Enclosure

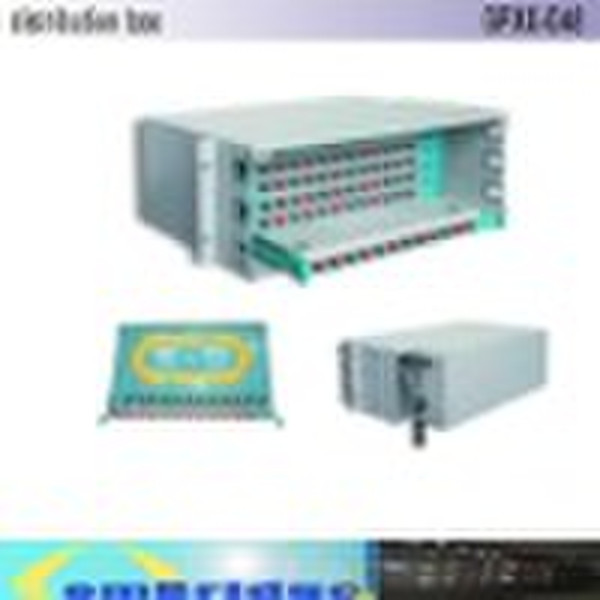

optical distribution box Features: 1) 19" standard installation, adjustable position in forward and backward direction 2) Compact aluminum body with electrostatic spraying surface, light structure and good-looking appearance 3) 12-core integrated distribution and splicing module uses the space efficiently (FC/SC adapter usable) 4) Equipped with cable fixing kits, fit for different application, such as standard rack and network rack 5) Fiber guiding hoops in front and rear sides protect fibers from mechanical damage, and are arranged to ensure bending radius protection 6) Capacities and heights: 48 or 72 cores with 4U height, 96 cores with 6U height Dimension and Capacity:Type Dimension (mm)Height × Width × DepthMaximum Capacity (Cores)Equipped Height (U)GPXX-D48176×482×300484GPXX-D72176×482×300724GPXX-D96265×482×330966
